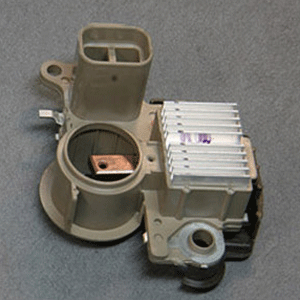

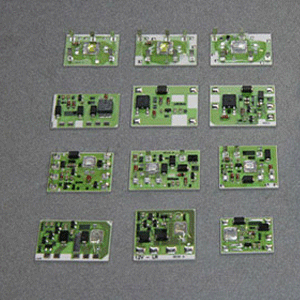

VOLTAGE REGULATOR
- Function: It functions to keep the power generation amount of the car's alternator constant, and is a device that charges the battery.
- Battery System : 12V/24V
- Setting Voltage : 14.1V~14.7V, 28.1V~28.85V
- Temp. Coefficient : -7mV/℃ ~ -10mV ℃

Detailed specifications by type

**종류별 상세 스팩**
No, Part No, Setting Voltage, Temperature Characteristic, Size, High Voltage Capability, Datasheet 등 목록을 나타낸 표입니다.
No.	Part No.	Setting Voltage	Temperature Characteristic	Size	High Voltage Capability
1	WIT-001	14.6±0.2	-7mV/℃	22.0X16.0	350V
2	WIT-002	14.4±0.2 / 15.6±0.2	-10mV/℃	22.0X16.0	350V
3	WIT-003	14.4±0.2 / 15.6±0.2	-7mV/℃	30.0x22.0	100V
4	WIT-004	14.4±0.2 / 15.6±0.2	-10mV/℃	30.1X18.1	350V
5	WIT-005	14.7±0.2	-7mV/℃	30.1X18.1	350V
6	WIT-006	14.4±0.2 / 15.6±0.2	-10mV/℃	30.0X22.0	350V
7	WIT-007	28.5±0.2	-7mV/℃	25.4X23.0	350V
8	WIT-008	28.5±0.2	-10mV/℃	22.0X16.0	350V
9	WIT-009	14.7±0.2 / 15.6±0.2	-7mV/℃	24.4X23.0	350V
10	WIT-010	14.4±0.2 / 15.6±0.2	-10mV/℃	28.0x21.0	350V
11	WIT-011	14.7±0.2	-7mV/℃	25.4X23.0	350V
12	WIT-012	14.4±0.2 / 15.6±0.2	-7mV/℃	25.4X23.0	350V

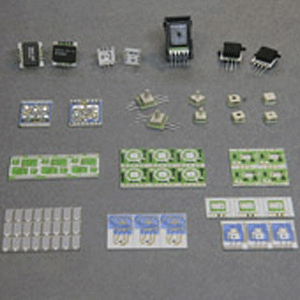

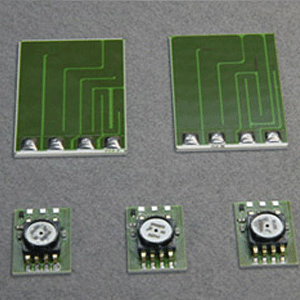

Sensor

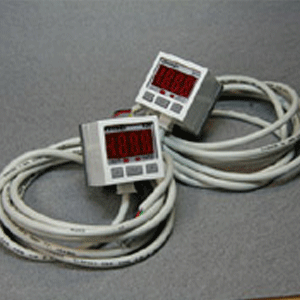

SENSOR SWITCH SPECIFICATION

Supply Voltage(± 15%)		12		24	VDC
Current consumption		50 or less			mA
Pressure Range		0 ~ 100			kPa
Accuracy(Offset, Span, Linearity)			± 1%	± 2%	%FSO
Temperature Compensated Range		0		50	℃
Operation Temprature		-25		70	℃
Selectable units		㎏f/㎠, bar, psi, mmHg, inHg
Analog voltage output		1		5	VDC
Power loading Time			3	10	min
Operation indicators	Comparative Output 1	lights up when Comparative Output 1 is ON
Operation indicators	Comparative Output 2	lights up when Comparative Output 2 is ON
Output modes (4 Types of modes)		Hysteresis mode, Window comparator mode, Dual output mode, Automatic sensitivity setting mode
Hysteresis		1 digit(However,variable in hysteresis mode and 2 digit when using psi unit)
Comparative outputs		NPN output
Burst Pressure			5		× F.S
Applicble fluid		Air(Non-corrosive gas)
Size		30*30			mm
Pressure port
Cable
비고	Red: (+12V ~ +24V) Black: (GND) Green: (Analog Output) White: (OUT2) Yellow: (OUT1)
