 WaferSense
KANOMAX

MSI Tokyo

Making life easy agin

MSI Tokyo, which started as a venture company at Osaka University, has developed high-tech Mass Spectrometer technology through its unique technology. infiTOF of MSI Tokyo is a portable high-resolution mass spectrometer based on an intuitive software interface. By using multi-turn technology, it is smaller than traditional mass spectrometers without loss of resolution, and its portability opens up possibilities for field testing and wireless operation that were impossible before.

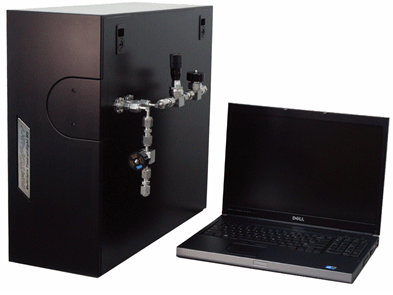

infiTOF
- High Reso, And compact Time of Flight MS down

- infiTOF-UHF : infiTOF for gas analysis down

- infiTOF-PRO : infiTOF for gas analysis (Process Specification) down
  • 동위원소 분석동위원소 분석
    (Isotope Analysis)
  • 암모니아가스 분석암모니아가스 분석
    (Accurate NH3 analysis)
  • 프로세스 가스 분석프로세스 가스 분석
    (Process gas analysis / monitoring with high resolution)

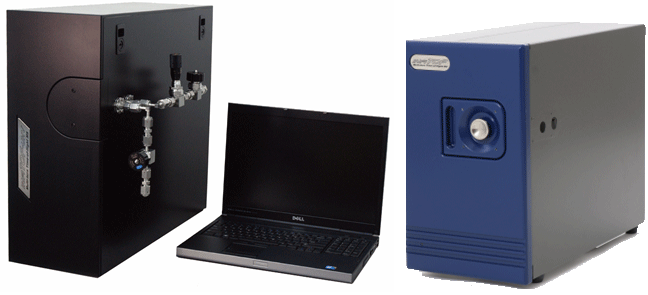

infiTOF-Pro, infiTOF-Duo

  • infiTOF-ProinfiTOF-Pro
  • infiTOF-DuoinfiTOF-Duo
WaferSense
Item infiTOF-Pro infiTOF-Duo
Resolution 30,000 40,000
Repetition time 1msec 100μS
Sensitivity 38Ar(5.9ppm) S/N>10 132Xe(87ppb) S/N>10

KENOMAX (Making Life Easy Again)

  • High-tech Mass Spectrometer technology has developed with unique technology.
  • Infi-TOF is a portable high-resolution mass spectrometer based on an intuitive software interface.
  • By using multi-turn technology, it boasts a significantly smaller size compared to traditional mass spectrometers.
  • This product, which secured portability without loss of resolution, opened up the possibilities for real-time field testing and wireless operation that were impossible before.

Infi-TOF

  • High Resolution, and compact Time of Flight MS
  • infi TOF-PRO : infi-TOF for gas analysis (Process Specification)
  • infi TOF-Duo : infi-TOF for gas analysis (New product for better portability)
